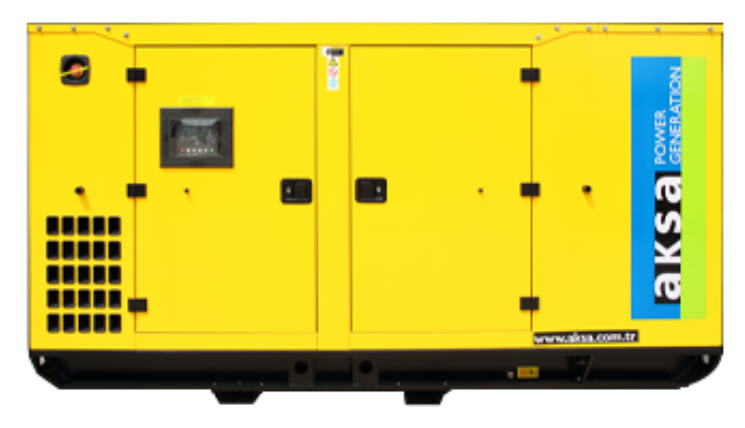

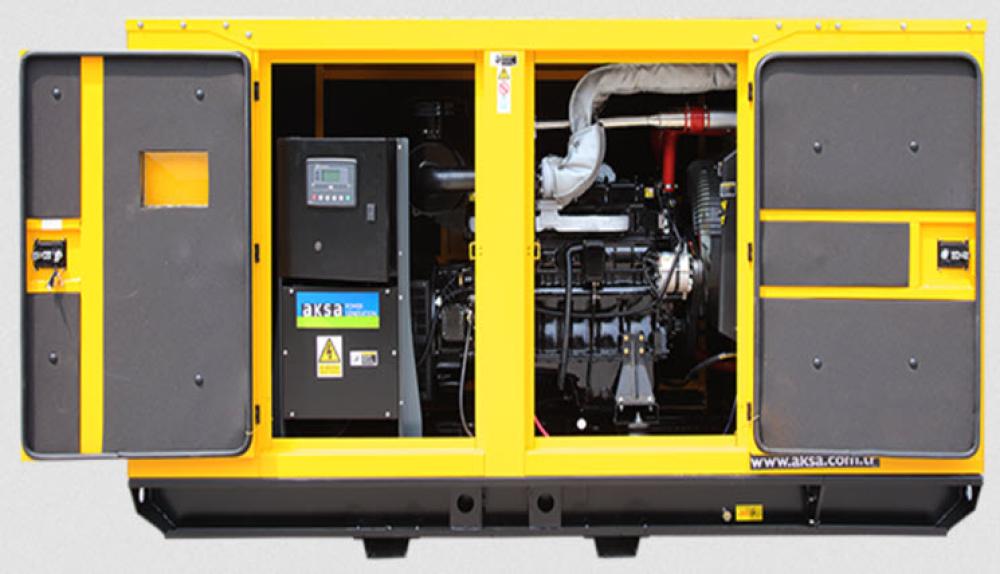

Power Generator - 110 KVA (Diesel)
Ürün Kodu : Marka :
Heavy duty, water cooled diesel engine Radiator with mechanical fan Protective grille for rotating and hot parts Electric starter and charge alternator Starting battery (with lead acid) including rack and cables Engine coolant heater Steel base frame and anti-vibration isolators Spare external fuel tank (open set) ....
Power Generator - 110 KVA (Diesel)
It provides ideal performance in fixed installations, as a backup or continuous power supply.
The high quality standards applied during production prepare the products to be used in a way that does not require service. All tests are done during the manufacture of the generators and before they leave the factory.
Alternator: AK 480 CONTROL SYSTEM: DSE 6120
Certificate
TS ISO 9001-2008
CE
General Characteristics
| Model Name | APD 110 A |
| Frequency (Hz) | 50 |
| Fuel Type | Diesel |
| Engine Made and Model | AKSA - A4CRX46TI |
| Alternator Made and Model | Aksa - AK 480 |
| Control Panel Model | DSE 6120 |

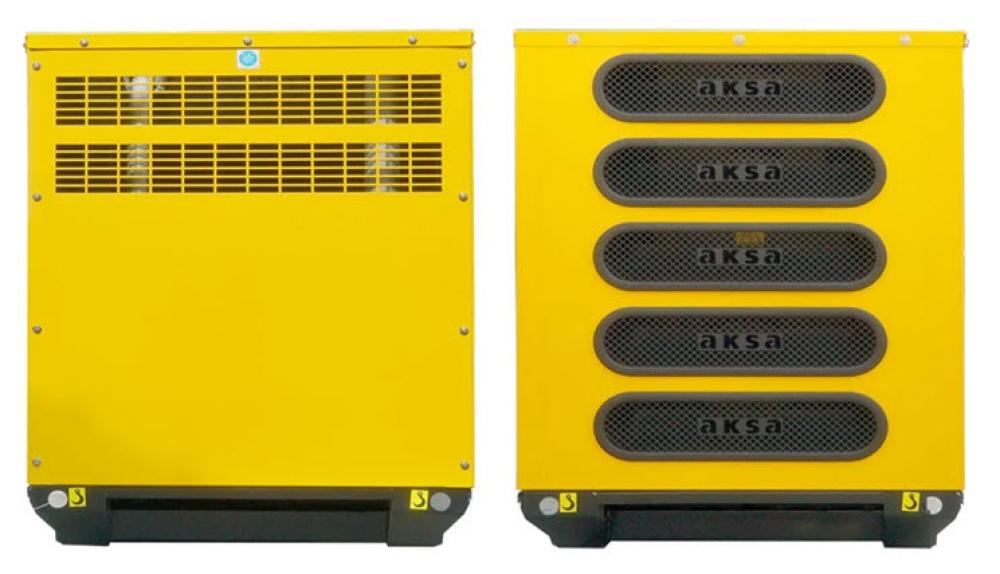

| Canopy | ACP 6 |
3 Phase, 50 Hz, PF 0.8
| VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
| kVA | kW | kVA | kW | ||
| 400/231 | 110 | 88.00 | 100 | 80.00 | 158.78 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
| Engine | AKSA | ||
| Engine Model | A4CRX46TI | ||
| NO. OF CYLINDERS AND BUILD | 4 cylinders - in line | ||
| BORE AND STROKE | mm | 110 X 125 | |
| TOTAL DISPLACEMENT | L | 4,58 | |
| Aspiration | Turbo Charged and Intercooled(Water to Air) | ||
| COMPRESSION RATIO | 17:1 | ||
| RATED SPEED (RPM) | d/dk | 1500 | |
| OIL CAPACITY | L | 14 | |
| Standby Power (kW/HP) | 102/138.68 | ||
| Prime Power | 93/126.44 | ||
| Block Heater QTY | |||
| 1 | |||
| Block Heater Power (Watt) | |||
| 1000 | |||
| Fuel Type | |||
| Diesel | |||
| Injection Type and System | |||
| Direct | |||
| Type of Fuel Pump | |||
| PM pump | |||
| Governor System | |||
| Electronic | |||
| Operating Voltage (Vdc) | |||
| 24 Vdc | |||
| Battery and Capacity (Qty/Ah) | |||
| 2x60 | |||
| Cooling Method | |||
| Water Cooled | |||
| Cooling Fan Air Flow (m3/min) | |||
| 132 | |||
| Coolant Capacity (engine only / with radiator) (lt) | |||
| 6/24 | |||
| Air Filter | |||
| Dry Type | |||
| Fuel Cons. Prime With %100 Load (lt/hr) | |||
| 23 | |||
ALTERNATOR SPECIFICATIONS
| Manufacturer | Aksa | |
| Alternator Made and Model | AK 480 | |
| Frequency (Hz) | Hz | 50 |
| Power (kVA) | kVA | 100 |
| DESIGN | Brushless | |
| VOLTAGE | V | 400 |
| Phase | 3 | |
| A.V.R. | SX460 | |
| Voltage Regulation | (+/-) | 1% |
| Insulation System | H | |
| Protection | IP22 | |
| Rated Power Factor | 0.8 | |
| WEIGHT COMP. GENERATOR (Kg) | 406 | |
| COOLING AIR (m³/min) | m3 | 30,84 |
SIZE and WEIGHT
| Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
| - | - | - | - | ||
| CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
| ACP 6 | 1685 | 2390 | 1058 | 1681 | 155 |
STANDARD SPECIFICATIONS
Heavy duty, water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
- Fuel-Water Seperator Filter
- Oil heater
ALTERNATOR
- Anti-Condensation Heater
- Single Phase ( 4 lead)
- Main line circuit breaker
CONTROL SYSTEM
- Earth fault, single set
- Charge Ammeter
TRANSFER SWITCH
- Three Pole Contactor
- Four Pole Contactor
- Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Low and high fuel level alarm
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Trailer
- Tool kit for maintenance
