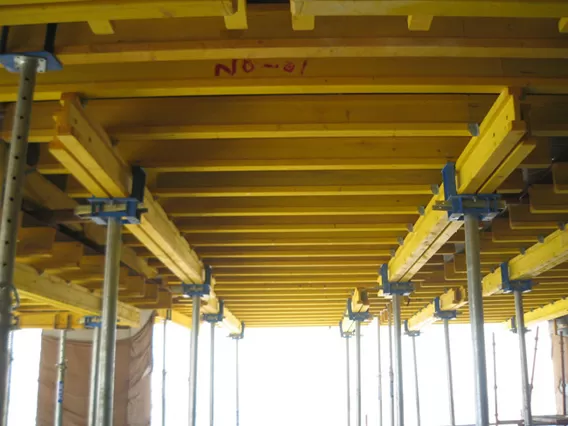

TELESCOPIC PROP / SHORING PROP
Ürün Kodu : 1541 Marka :
Telescopic strut poles are easy to install, carry and stock up from 3.0 meters to 6 meters.
is preferred. 76mm diameter pillar poles are produced for increasing floor thicknesses.
It can be used with the help of a tripod. We can manufacture in any size and thickness.
TELESCOPIC PILLAR POST
Telescopic strut poles are easy to install, carry and stock up from 3.0 meters to 6 meters.
is preferred. 76mm diameter pillar poles are produced for increasing floor thicknesses.
It can be used with the help of a tripod. We can manufacture in any size and thickness.
Outer pipes as standard are Ø 60 - 2.5 mm, fine adjustment screw Ø 60 - 3.00 mm, inner pipes Ø 48 - 3.00 mm.
Fine adjustment screw Ductile iron weighs 520 g. Base plate and flat head are 120 x 120 x 6 mm thick.
U head is 90 x 190 x 4 mm thick. The girder heads are made of 300 mm deep, 5 mm thick sheet metal supported by the bottom.
The turning arm and adjusting hook are made of Ø 12 mm flat iron. It is very easy to use. Sensitivity,
working capacity can be used repeatedly with a long service life.
Welding is done on automatic machines. Optional galvanized.
Name Working Distance cm Outside cm Inside cm Weight
1,5 + 1,5 TDD 175 - 290 175 150 13,00 Kg
1,5 + 2,0 TDD 205 - 340 175 200 14,50 Kg
2,0 + 2,0 TDD 225 - 390 225 200 16,00 Kg
2,0 + 2,5 TDD 255 - 440 225 250 17,50 Kg
2,5 + 2,5 TDD 275 - 490 275 250 19,00 Kg
